Product Description:

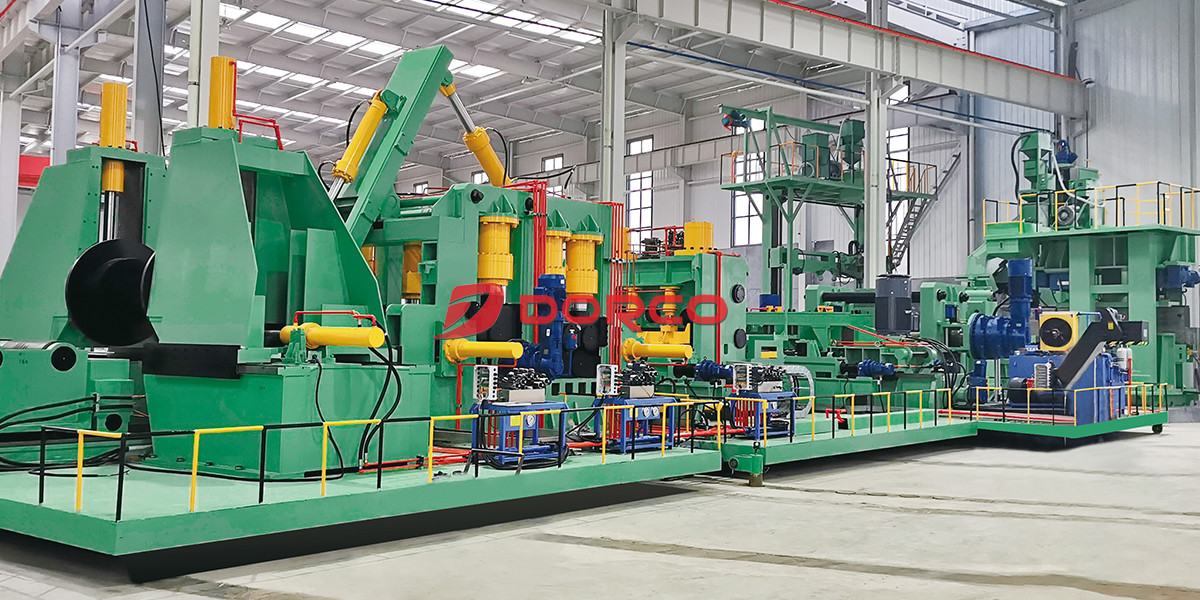

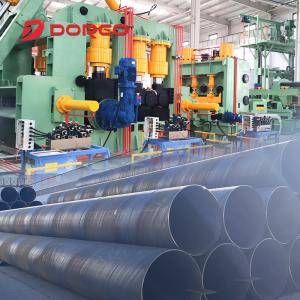

The spiral welded pipe unit is a standard finalized unit developed and improved by DORCO Heavy Industry on the basis of absorbing the essence of foreign molding technology and combining with the actual situation in China. It is the most competitive and mature unit with technical characteristics of DORCO Heavy Industry.
Features:
The raw materials are strip steel coils, welding wire, and flux. Strict physical and chemical inspections must be conducted before investment.
The head and tail of the strip steel are connected by single or double wire submerged arc welding, and after being rolled into a steel pipe, active submerged arc welding is used for repair welding.
Before forming, the strip steel undergoes leveling, trimming, planing, surface cleaning, transportation, and pre bending treatment.
Using an electric contact pressure gauge to control the pressure of the oil cylinders on both sides of the conveyor to ensure the smooth transportation of the strip steel.

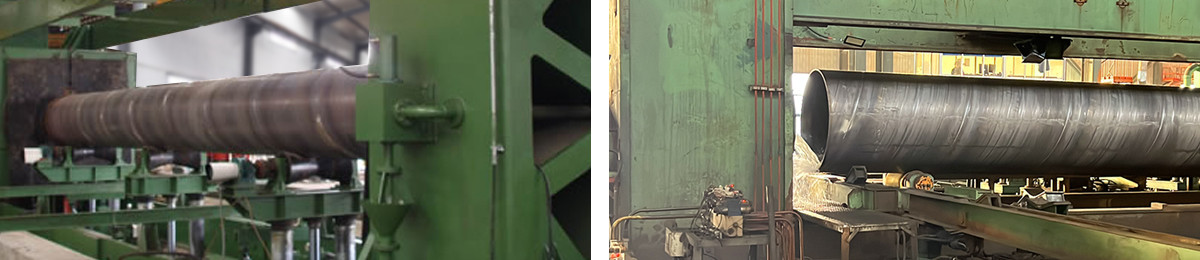

Adopting external or internal control roller molding.
The use of a weld seam gap control device ensures that the weld seam gap meets the welding requirements, and the pipe diameter, misalignment, and weld seam gap are strictly controlled.
Both internal and external welding are carried out using American Lincoln welding machines for single or double wire submerged arc welding, in order to achieve stable welding quality.
Use an air plasma cutting machine to cut steel pipes into individual pieces.
Each batch of steel pipes must undergo a strict inspection system to check the mechanical properties, chemical composition, fusion condition, surface quality of the steel pipes, and undergo non-destructive testing to ensure that the pipe manufacturing process is qualified before it can be officially put into production.
Technical Parameters:
| Model | Specification(mm) | Coil weight (ton) | Coil width(mm) | Thickness(mm) | Capacity(KW) | Area(m2) |
| DRC-400 | φ219-φ426 | 10 | 400-750 | 5-8 | 150 | 18*72 |
| DRC-500 | φ219-φ529 φ219-φ720 | 15 | 400-800 | 5-10 | 180 | 18*72 |
| DRC-600 | φ219-φ630 | 15 | 450-1050 | 6-10 | 190 | 21*72 |
| DRC-700 | φ219-φ720 | 15 | 500-1250 | 5-12.7 | 210 | 21*72 |
| DRC-800 | φ219-φ820 | 20 | 500-1300 | 6-12.7 | 220 | 24*78 |
| DRC-1000 | φ219-φ1020 | 20 | 500-1560 | 6-12.7 | 220 | 24*78 |
| DRC-1400 | Φ325-φ1420 | 25 | 500-1560 | 6-18 | 400 | 24*120 |
| DRC-1600 | Φ426-φ1620 | 30 | 1100-1600 | 6-20 | 400 | 24*120 |
| DRC-1800 | φ508-φ1820 | 30 | 1200-1600 | 8-25.4 | 500 | 24*180 |
| DRC-2000 | φ508-φ2020 | 30 | 1200-2000 | 8-25.4 | 550 | 24*180 |
| DRC-2400 | φ508-φ2400 | 30 | 1200-2000 | 8-25.4 | 600 | 24*200 |
| DRC-3000 | φ508-φ3000 | 30 | 1200-2000 | 8-25.4 | 700 | 24*200 |
Applications:
High and low pressure fluid conveying pipes: high strength, able to withstand large impact forces, smooth inner walls, and high transportation efficiency.
Pile pipes for urban construction: used for supporting and framing building structures to ensure project safety and stability.
Industrial structural pipes: resistant to high temperature and corrosion, can be used in harsh environments, and have a short construction period.
Electricity/heat/gas pipelines: not easily deformed or broken, long service life, strong sealing, ensuring safe operation of pipelines.
Support and Services:
The Spiral Weld Pipe Mill product comes with comprehensive Product Technical Support and Services to ensure efficient operation and maintenance. Our team of experts is available to provide assistance with installation, troubleshooting, and repairs. Additionally, we offer training programs to help operators maximize the performance of the mill. Our goal is to ensure that your Spiral Weld Pipe Mill operates at its best and delivers high-quality products consistently.
